J941H Electric Globe Valve

Product overview

Product model: J941H
Nominal diameter: DN50~300mm
Nominal pressure: PN1.6~16.0MPa
Applicable temperature: ≤540℃
Main material: carbon steel, stainless steel, etc
Design standard: GB12235
Structure length: GB12221
Flange size: GB9113 JB79 HG20592-20635
Pressure - temperature: GB9131 JB/T74 HG20604
Test - inspection: GB/T13927 JB/T9092

J941H Electric Globe Valve product details

J941H Electric Globe Valve basic information

The opening and closing parts of J941H electric globe valve produced and sold by Baigang valve group are plug shaped disc, the sealing surface is flat or conical, and the disc moves in a straight line along the center line of the fluid.Stem movement form, there are lifting rod type (stem lifting, hand wheel not lifting), there are also lifting rotary rod type (hand wheel and stem together rotating lifting, nut in the valve body).Electric globe valve is only suitable for full opening and full closing, not allowed to adjust and throttle.

J941H Electric Globe Valve valve features

1, Compact structure, reasonable design, good valve rigidity, smooth passage, small flow resistance coefficient.

2, the sealing surface of stainless steel and carbide, long life.

3, Flexible graphite packing, reliable sealing, light and flexible operation.

4, sub-manual, electric, pneumatic, gear transmission, structure type: elastic wedge single gate, rigid wedge single gate and double gate type.

5, Widely used in petroleum chemical industry, thermal power plants and other oil products, water vapor pipeline for access or cut off the medium pipeline opening and closing devices.

J941H Electric Globe Valve adaptation conditions
Electric valve, valve seat sealing surface using iron-based alloy surfacing or Stellite (Stellite) cobalt-based carbide surfacing made of wear-resistant, high temperature, corrosion resistance, scratch resistance Good performance and long service life, suitable for pipeline with various working conditions such as petroleum, chemical, pharmaceutical, chemical fertilizer and electric power industry whose nominal pressure PN1.6 ~ 16MPa and operating temperature -29 ~ 550 ℃, cut off or connect the pipeline medium. Drive mode manual, gear transmission, electric, pneumatic and so on.

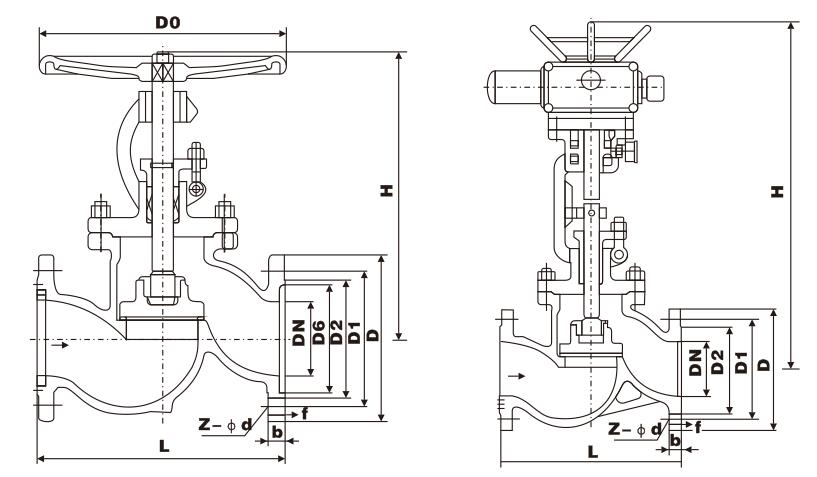

J941H Electric Globe Valve main dimensions

PN (MPa)	DN (mm)	standard value									Reference
PN (MPa)	DN (mm)	L	D	D1	n2	D6	b	f	f1	Z-φd	L1	H	Weight (kg)
1.6	50	230	160	125	100		16	3		4-φ18	590	645	48
	65	290	180	145	120		18	3		4-φ18	590	690	60
	80	310	195	160	135		20	3		8-φ18	590	715	65
	100	350	215	180	155		20	3		8-φ18	590	770	71
	125	400	254	210	185		22	3		8-φ18	590	780	119
	150	480	280	240	210		24	3		8-φ23	590	810	210
	200	600	335	295	265		26	3		12-φ23	810	967	320
	250	622	405	355	320		30	3		12-φ25	810	1143	550
	300	698	460	410	375		30	4		12-φ25	830	1292	785
2.5	50	230	160	125	100		20	3		4-φ18	590	645	50
	65	290	180	145	120		22	3		8-φ18	590	690	65
	80	310	195	160	135		22	3		8-φ18	590	715	67
	100	350	230	190	160		24	3		8-φ23	590	770	73
	125	400	270	220	188		28	3		8-φ25	590	780	127
	150	480	300	250	218		30	3		8-φ25	810	810	215
	200	600	360	310	278		34	3		12-φ25	810	967	322
	250	622	425	370	332		36	3		12-φ30	830	1143	585
	300	698	485	430	390		40	4		16-φ30	830	1292	795
4.0	50	230	160	125	100	88	20	3	4	4-φ18	590	645	61
	65	290	180	145	120	110	22	3	4	8-φ18	590	690	75
	80	310	195	160	135	121	22	3	4	8-φ18	590	715	84
	100	350	230	190	160	150	24	3	4.5	8-φ23	590	770	101
	125	400	270	220	188	176	28	3	4.5	8-φ25	810	782	207
	150	480	300	250	218	204	30	3	4.5	8-φ25	810	875	226
	200	600	375	320	282	260	38	3	4.5	12-φ30	810	1160	399
6.4	50	300	175	135	105	88	26	3	4	4-φ23	590	710	64
	65	340	200	160	130	110	28	3	4	8-φ23	590	750	77
	80	380	210	170	140	121	30	3	4	8-φ23	590	785	86
	100	430	250	200	168	150	32	3	4.5	8-φ25	810	837	171
	125	500	295	240	202	176	36	3	4.5	8-φ30	810	1031	243
	150	550	340	280	240	204	38	3	4.5	8-φ34	830	1066	296
	200	650	405	345	300	260	44	3	4.5	12-φ34	830	1213	420
10.0	50	300	195	145	112	88	28	3	4	4-φ25	590	714	81
	65	340	220	170	138	110	32	3	4	8-φ25	590	734	102
	80	380	230	180	148	121	34	3	4	8-φ30	810	847	175
	100	430	265	210	172	150	38	3	4.5	8-φ30	810	950	194
	125	500	310	250	210	176	42	3	4.5	8-φ34	830	1141	285
	150	550	350	290	250	204	46	3	4.5	12-φ34	830	1240	450
	200	650	430	360	312	260	54	3	4.5	12-φ4l	830	1425	850
16.0	50	300	215	165	132	88	36	3	4	8-φ25	590	562	92
	65	340	245	190	152	110	44	3	4	8-φ30	810	743	165
	80	380	260	205	168	121	46	3	4	8-φ30	830	820	216
	100	430	300	240	200	150	48	3	4.5	8-φ34	830	935	238

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the J941H Electric Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
