ZZYM Self-operated Regulating Valve
Product overview
Product model: ZZYM
Nominal diameter: DN25 ~ 300mm, G1 "~ 12"
Nominal pressure: PN16 ~ 64MPa
Applicable temperature: -5 ~ +350℃
Main material: SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M
Design standard: GB/T17213
Structure length: GB12221-89
Inspection standard: GB/T4213
Flange standard: JIS B220, JB/T79, ANSI B16.5-1981, GB/T9113, HG20594-97, HG20618-97, etc

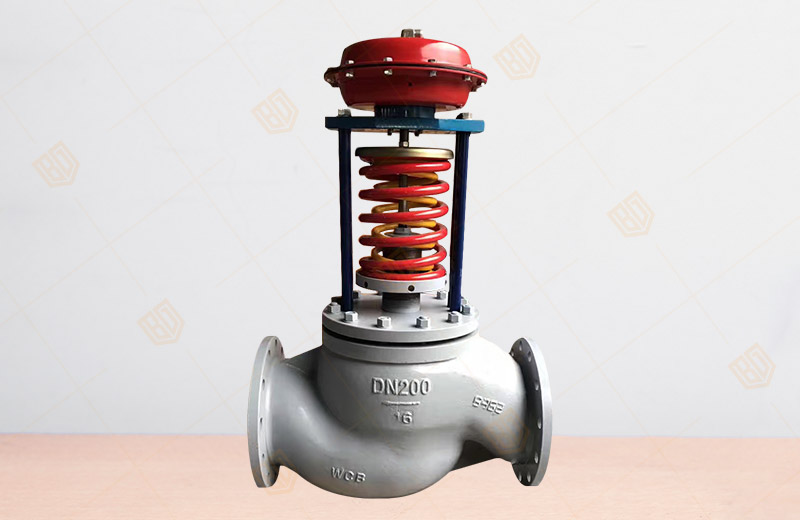

ZZYM Self-operated Regulating Valve product description:
ZZYM Self-operated Regulating Valve produced and sold by Baigang valve group without external energy, the use of the media
itself as the power of the media to be adjusted, the introduction of the
actuator control spool position, change both ends of the pressure and
flow, so that before the valve (or valve) pressure stability. With
sensitive, good sealing, small pressure set point fluctuations, etc.,
are widely used in gas, liquid and vapor pressure regulator
decompression regulator or automatic control.
This series of products have a single seat (ZZYP), sleeve (ZZYM),
two-seat (ZZYN) three structures; executive body film, piston two; role
type decompression valve with the pressure regulator (B type) And
pressure relief valve with pressure regulator (K type). Product nominal
pressure rating PN16, 40, 64; body diameter range DN20 ~ 300; leakage
levels are II, IV and VI third gear; flow characteristics for quick
opening; pressure sub-adjustment from 15 ~ 2500kPa. Can be combined as
needed to meet the needs of user conditions.
ZZYM Self-operated Regulating Valve features:
1,
Self-operated pressure control valve without additional energy, can
work in a non-electric gas-free place, both convenient and energy
saving.
2, the pressure range of small and cross each other, adjust the high precision.
3, the pressure setting can be set continuously during operation.
4, after the valve pressure regulator, the pressure before the valve and valve pressure ratio of 10: 1 ~ 10: 8.
5, rubber diaphragm detection, the implementation of high precision detection, action sensitive.
6, the use of pressure balance mechanism, so that the control valve responsive and precise control.
ZZYM Self-operated Regulating Valve main dimensions
|
Nominal diameter DN |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
||
|
Flange take over size B |
383 |
512 |
603 |
862 |
1023 |
1380 |
1800 |
2000 |
2200 |
||||||
|
Flange face distance L |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
||
|
Pressure force Tune Festival Fan Wai kPa |
15 ~ 140 |
H |
475 |
520 |
540 |
710 |
780 |
840 |
880 |
915 |
940 |
1000 |
|||
|
A |
280 |
308 |
|||||||||||||
|
280 ~ 500 |
H |
455 |
500 |
520 |
690 |
760 |
800 |
870 |
880 |
900 |
950 |
||||
|
A |
230 |
||||||||||||||
|
120 ~ 300 |
H |
450 |
490 |
510 |
680 |
750 |
790 |
860 |
870 |
890 |
940 |
||||
|
A |
176 |
194 |
280 |
||||||||||||
|
480 ~ 1000 |
H |
445 |
480 |
670 |
740 |
780 |
850 |
860 |
880 |
930 |
|||||
|
A |
176 |
194 |
280 |
||||||||||||
|
600 ~ 1500 |
H |
445 |
570 |
600 |
820 |
890 |
950 |
1000 |
1100 |
1200 |
|||||
|
A |
85 |
96 |
|||||||||||||
|
1000 ~ 2500 |
H |
445 |
570 |
600 |
820 |
890 |
950 |
1000 |
1100 |
1200 |
|||||
|
A |
85 |
96 |
|||||||||||||
|
Weight kg |
26 |
37 |
42 |
72 |
90 |
114 |
130 |
144 |
180 |
200 |
250 |
||||
|
Pressure pipe connector thread |
M16X1.5 |
||||||||||||||
