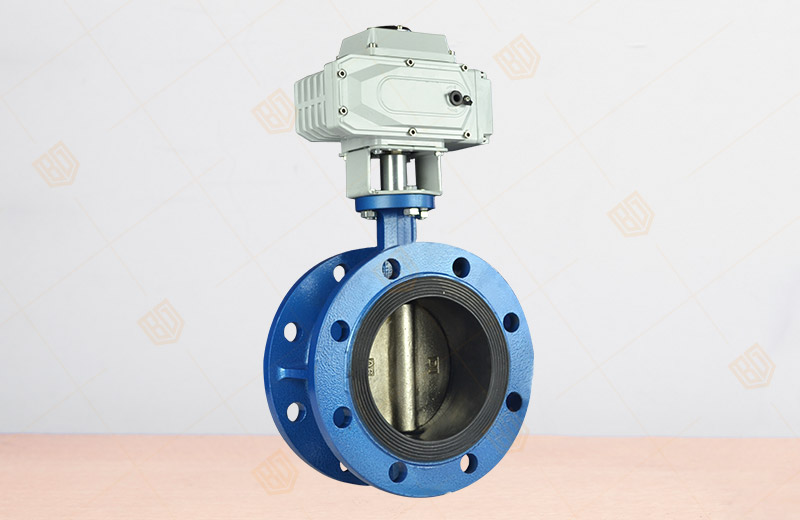

D941X Electric Flanged Soft Seal Butterfly Valve
Product overview
Product model: D941X
Nominal diameter: DN50 ~ 1000mm
Nominal pressure: PN0.6~4.0MPa
Applicable medium: water, steam, oil, acid corrosive, etc
Body material: cast steel, 304
Drive mode: electric, pneumatic, manual
Design standard: GB/T12238-1989
Flange connection size: GB/T9113.1-2000;GB/T9113.2-2000 GB/T9115.1-2000.GB/T9115.2-2000
Structure length: GB/T12221-1989
Pressure test: GB/T13927-1992;JB/T9092-1999
D941X Electric Flanged Soft Seal Butterfly Valve produced and sold by Baigang valve group are made of rubber sealing butterfly valve and carbon steel or stainless steel valve plate and valve stem. For temperature ≤ 120 ℃ Such as textile, paper, food, medicine, chemicals, petroleum, electricity, water supply and drainage, gas pipeline for regulating the role of flow and interception of the media.
D941X Electric Flanged Soft Seal Butterfly Valve Features
1, powerful: intelligent, regulatory, switching.
2, small size: the volume is only equivalent to about 35% of similar products.
3, easy to use: single-phase power supply, wiring is simple; using the
original spherical bulge structure, so that more convenient
observation; free refuel point inspection, waterproof anti-rust, any
angle installation.
4, double limit protection device, overheat protection, overload
protection. Full trip time 15 seconds, 30 seconds, 45 seconds, 60
seconds. And with manual function
| Nominal diameter | DN (mm) | 50 ~ 1000 | ||||
| Nominal pressure | PN (MPa) | 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
| test pressure | Strength test | 0.9 | 1.5 | 2.4 | 3.75 | 6.0 |
| Seal test | 0.66 | 1.1 | 1.76 | 2.75 | 4.4 | |
| Gas seal test | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Suitable media | Water, steam, oil, acid corrosive and so on. | |||||
D941X Electric Flanged Soft Seal Butterfly Valve main dimensions and weight (PN1.0 / 1.6MPa)
|
DN (mm) |
A | B | C | D | D1 | D2 | D3 | D4 | D5 | L | L1 | L2 | nd | a | f | n-d1 |
Weight WT (kg) |
| 50 | 83 | 130 | 20 | 52.9 | 125 | 165 | 99 | 57.15 | 65 | 108 | 111 | 32 | 4-19 | 90 ° | 3 | 4-7 | 7.6 |
| 65 | 93 | 145 | 20 | 64.5 | 145 | 185 | 118 | 57.15 | 65 | 112 | 115 | 32 | 4-19 | 90 ° | 3 | 4-7 | 9.7 |
| 80 | 100 | 155 | 22 | 78.8 | 160 | 20 | 132 | 69.85 | 65 | 114 | 117 | 32 | 8-19 | 45 ° | 3 | 4-7 | 10.6 |
| 100 | 114 | 170 | 24 | 104 | 180 | 220 | 156 | 69.85 | 90 | 127 | 130 | 32 | 8-19 | 45 ° | 3 | 4-10 | 13.8 |
| 125 | 125 | 190 | 26 | 123.3 | 210 | 250 | 184 | 69.85 | 90 | 140 | 143 | 32 | 8-19 | 45 ° | 3 | 4-10 | 18.2 |
| 150 | 143 | 205 | 26 | 155.6 | 240 | 285 | 211 | 88.9 | 90 | 140 | 143 | 32 | 8-23 | 45 ° | 3 | 4-10 | 21.7 |
| 200 | 170 | 235 | 26 | 202.5 | 295 | 340 | 266 | 88.9 | 125 | 152 | 155 | 45 |
8-23 12-23 |
45 ° / 30 ° | 3 | 4-14 | 31.8 |
| 250 | 198 | 280 | 28 | 250.5 | 350/355 | 395/405 | 319 | 107.95 | 125 | 165 | 168 | 45 |
12-23 12-28 |
30 ° | 3 | 4-14 | 44.7 |
| 300 | 223 | 310 | 28 | 301.5 | 400/410 | 445/460 | 370 | 107.95 | 150 | 178 | 182 | 45 |
12-23 12-28 |
30 ° | 4 | 4-14 | 57.9 |
| 350 | 279 | 340 | 30 | 333.3 | 460/470 | 505/520 | 429 | 158.75 | 150 | 190 | 194 | 45 |
16-23 16-28 |
22.5 ° | 4 | 4-14 | 81.6 |
| 400 | 300 | 375 | 32 | 389.6 | 515/525 | 565/580 | 480 | 158.75 | 175 | 216 | 221 | 51.2 / 72 |
16-28 16-31 |
22.5 ° | 4 | 4-20.6 | 106 |
| 450 | 345 | 430 | 32 | 440.5 | 565/585 | 615/640 | 530 | 158.75 | 175 | 222 | 227 | 51.2 / 72 |
20-28 20-31 |
18 ° | 4 | 4-20.6 | 147 |
| 500 | 355 | 500 | 34 | 491.6 | 620/650 | 670/715 | 582 | 215.9 | 210 | 229 | 234 | 52.75 / 77.5 |
20-26 20-34 |
18 ° | 4 | 4-20.6 | 165 |
| 600 | 410 | 560 | 36 | 592.5 | 725/770 | 780/840 | 682 | 254 | 210 | 267 | 272 | 70.2 / 82 |
20-31 20-37 |
18 ° | 5 | 4-22 | 235 |
| 700 | 478 | 620 | 40 | 695 | 840 | 895/910 | 794 | 254 | 300 | 292 | 299 | 66/82 |
24-31 24-37 |
15 ° | 5 | 8-18 | 338 |
| 800 | 529 | 620 | 44 | 794.7 | 950 | 1015/1025 | 901 | 254 | 300 | 318 | 325 | 66/82 |
24-34 24-40 |
15 ° | 5 | 8-18 | 475 |
| 900 | 584 | 665 | 46 | 864.7 | 1050 | 1115/1125 | 1001 | 254 | 350 | 330 | 338 | 118 |
28-34 28-40 |
12.9 ° | 5 | 8-22 | 595 |
| 1000 | 657 | 735 | 50 | 965 | 1160/1170 | 1230/1255 | 1112 | 254 | 350 | 410 | 417 | 141 |
28-37 28-43 |
12.9 ° | 5 | 8-22 | 794 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the D941X Electric Flanged Soft Seal Butterfly Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
