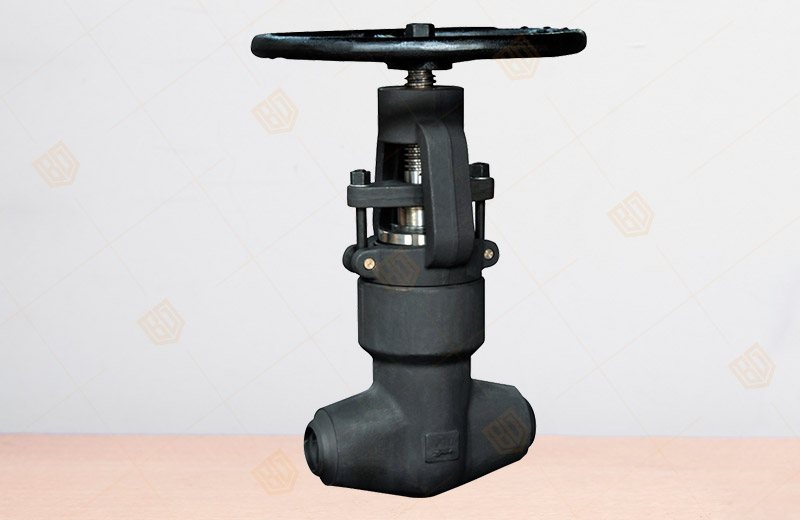

J61Y Self-sealing 2500Lb Globe Valve

Product overview

Product model: J61Y
Nominal diameter: NPS1/2"~2"
Nominal pressure: Class150~2500Lb
Applicable medium: water, steam, oil, etc
Main material: A105, A182F22, A182F304, A182F316 (L)
Applicable temperature: -29℃ ~ 550℃

J61Y Self-sealing 2500Lb Globe Valve product details

J61Y Self-sealing 2500Lb Globe Valve standard material list

Serial number

Part Name

CStoASTM

AStoASTM

SStoASTM

A105

A182F22

A182F304

A182F316 (L)

1

Body

A105

A182F22

A182F304 (L)

A182F316 (L)

2

Disc

A276420

A276304

A276304 (L)

A276F316 (L)

3

Valve stem

A182F6

A182F304

A182F304 (L)

A182F316 (L)

4

Sealing ring

A182F304L

A182F316L

5

Sealed nut

A105

A182F304

A182F304 (L)

A182F316L

6

cap

A105

A182F22

A182F304 (L)

A182F316 (L)

7

Pin

A276420

A182F304

8

washer

A105

A182F22

A182F304 (L)

A182F316 (L)

9

Raise the nut

A1942H

A1944

A1948

A1948M

10

filler

Flexible graphite

PTFE

11

Packing pressure sleeve

A276420

A182F304

12

Easter bolt

A193B7

A193B16

A193B8

A193B8M

13

Packing platen

A216WCB

A351CF8

14

Nut

A194 2H

A1944

A1948

A1948M

15

Stem nut

A276 410

16

Handwheel

A197

17

fasten the screw nut

A1942H

A1944

A1948

A1948M

18

Oil nozzle

copper

Suitable media

Water, steam, oil and so on

Water, steam, oil and so on

Nitric acid, acetic acid and so on

proper temperature

-29 ° C to 425 ° C

-29 ° C to 550 ° C

-29 ℃ ~ 200 ℃

Note: Other materials required by the customer may also be used. Seal Material Matching Customers Specified Internal Part Code Decision

CS = carbon steel; AS = alloy steel; SS = stainless steel;


J61Y Self-sealing 2500Lb Globe Valve size (MM) and weight (KG)

NPS

1/2 "

3/4 "

1"

11/4 "

11/2 "

2"

L

900Lb-150Lb

140

140

140

178

178

216

2500Lb

186

186

186

232

232

279

H (on)

333

333

333

408

408

524

W

160

160

180

200

250

280

weight

900LB-1500LB

11.2

10.5

10.1

21.0

19.6

40.4

2500LB

12.3

11.6

10.8

28.0

26.4

43.8



Reminder:

All text, data and pictures in this article are for reference only.To see more details of the J61Y Self-sealing 2500Lb Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
