J44F46 Fluorine Lined Angle Globe Valve

Product overview

Product model: J44F46
Nominal diameter: DN50-300mm
Service pressure: 1.6Mpa - 6.4Mpa
Connection mode: flange connection
Operation mode: manual
Function: switch function
Use medium: water. Oil.Steam. Corrosion resistant media
Main material: cast steel.Stainless steel. Chromium-molybdenum steel
Manufacturing standard: mechanical department standard or custom non - standard

J44F46 Fluorine Lined Angle Globe Valve product details

J44F46 Fluorine Lined Angle Globe Valve product Description
J44F46 Fluorine Lined Angle Globe Valve produced and sold by Baigang valve group by the valve stem and the central axis along the valve to do the lifting movements of the valve, the pipeline is mainly used to connect or cut off the medium in the pipeline, but can not do with the throttle.

J44F46 Fluorine Lined Angle Globe Valve basic structural features

1, plastic lining J41 straight through, J45 straight slip, J44 angle valve, with a compact structure, opening and closing flexible, corrosion resistance, short stroke (generally nominal pass through 1/4) and so on. Is widely used in petroleum, chemical and other piping systems to do truncated media, but the plastic lining of the globe valve is strictly prohibited for flow control, so as to avoid throttling at high-speed media flow erosion damage sealing surface.

2, the valve flap and stem design as a whole structure, to prevent the pipeline due to pressure fluctuations caused by the possibility of internal parts out of the body, compact structure, the use of safety.


J44F46 Fluorine Lined Angle Globe Valve main components of the material table
Serial number Part Name grey cast iron Cast steel Stainless steel acid-proof Ultra-low carbon stainless steel acid-proof
Z C P R PL RL
1 Body / bonnet HT250 WCB CF8 CF8M CF3 CF3M
2 Sphere / stem 25 2Cr13 1Cr18Ni9 1Cr18Ni12Mo2Ti 00Cr18Ni10 00Cr17Ni14Mo2
3 Lining / seat PCTEF (F3), FEP (F46), PFA (Soluble F4), PP, PO
4 Packing gland WCB CF8 CF8M CF3 CF3M
5 filler PTFE (F4) PTFE (F4) PTFE (F4)
6 Easter bolt 35 1Cr17Ni2 1Cr17Ni2
7 Stem nut ZCuAl10Fe3 ZCuAl10Fe3 ZCuAl10Fe3
8 Tighten the bolts 35 1Cr17Ni2 1Cr18Ni9Ti
9 Nut 45 0Cr18Ni9 0Cr18Ni9
10 handle WCB WCB WCB

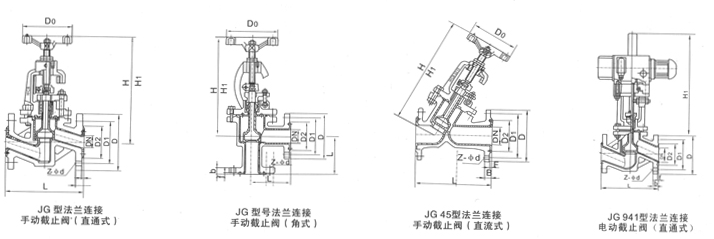

J44F46 Fluorine Lined Angle Globe Valve main shape and connection dimensions


Nominal diameter L D D1 D2 f b Z-φd
DN (mm) NPS (inch) PN1.0MPa
15 1/2 90 95 65 45 2 14 4-φ14
20 3/4 95 105 75 55 2 16 4-φ14
25 1 100 115 85 65 2 16 4-φ14
32 11/4 105 135 100 78 2 18 4-φ18
40 11/2 115 145 110 85 3 18 4-φ18
50 2 125 160 125 100 3 20 4-φ18
65 21/2 145 180 145 120 3 20 4-φ18
80 3 155 195 160 135 3 22 4-φ18
100 4 175 215 180 155 3 22 8-φ18
125 5 200 245 210 185 3 24 8-φ18
150 6 225 280 240 210 3 24 8-φ23
200 8 275 335 295 265 3 26 8-φ23
250 10 325 390 350 320 3 28 12-φ23
300 12 375 440 400 368 4 28 12-φ23
PN1.6MPa
15 1/2 90 95 65 45 2 14 4-φ14
20 3/4 95 105 75 55 2 16 4-φ14
25 1 100 115 85 65 2 16 4-φ14
32 11/4 105 135 100 78 2 18 4-φ18
40 11/2 115 145 110 85 3 18 4-φ18
50 2 125 160 125 100 3 20 4-φ18
65 21/2 145 180 145 120 3 20 4-φ18
80 3 155 195 160 135 3 22 8-φ18
100 4 175 215 180 155 3 24 8-φ18
125 5 200 245 210 185 3 26 8-φ18
150 6 225 280 240 210 3 28 8-φ23
200 8 275 335 295 265 3 30 8-φ23
PN2.5MPa
15 1/2 90 95 65 45 2 16 4-φ14
20 3/4 95 105 75 55 2 16 4-φ14
25 1 100 115 85 65 2 16 4-φ14
32 11/4 105 135 100 78 2 18 4-φ18
40 11/2 115 145 110 85 3 18 4-φ18
50 2 125 160 125 100 3 20 4-φ18


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the J44F46 Fluorine Lined Angle Globe Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
