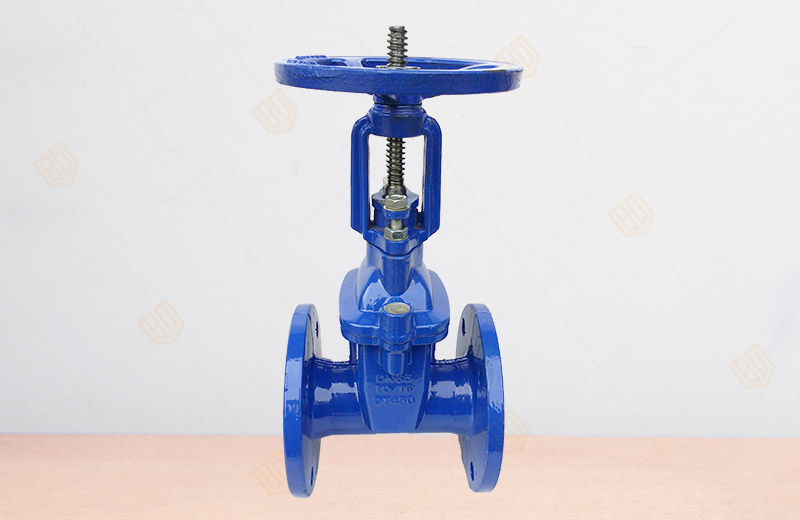

Z41X Rising Stem Soft Seal Gate Valve

Product overview

Product model: Z41X
Nominal diameter: DN15-600 mm
Nominal pressure: PN1.6~2.5MPa
Applicable temperature: 0 ~ 80℃
Applicable medium: water
Body material: ductile iron, etc
Drive mode: manual, electric, pneumatic, etc
Flange standard: GB/T 17241.6GB9113
Test standard: GB13927 AP1598

Z41X Rising Stem Soft Seal Gate Valve product details

Z41X Rising stem soft seal gate valve product overview

Z41X Rising stem soft seal gate valve produced and sold by Baigang valve group addition to the advantages of the elastic seat gate valve, and can be more intuitive display valve opening, opening and closing quickly and reliably, it is often used in fire and industrial systems. Generally installed at a higher position from the ground. I plant the introduction of European high-tech valve manufacturing technology produced by the seat block valve, the use of the whole door plastic deformation generated deformation effect to achieve a good sealing effect, to overcome the poor general valve seal, leakage and rust phenomenon. It can be widely used as a regulating and intercepting device in fluid lines such as tap water, sewage, construction, petroleum, chemical, food, medicine, light injury, electric power, shipping, metallurgy and energy system.

Z41X Rising stem soft seal gate valve characteristic
 1, the overall plastic package: The gate with the overall plastic package, its good coverage and precise geometric dimensions to ensure reliable sealing, life expectancy.
 2, light weight: made of ductile iron body, light weight, easy to install.
 3, flat bottom valve seat: the bottom of the same flat-type valve seat with water pipe design, does not produce debris siltation, sealing more reliable.
 4, corrosion-resistant: Cavity non-toxic epoxy coating to prevent corrosion and rust, not only for drinking, but also for the sewage system.
 5, three "0" seal: the stem adopts three 0-ring seal, friction resistance, light switch, watertight.


Third,  open-rod soft seal gate valve main performance parameters

Pressure Level 1.0 MPa, 1.6 MPa, 2.5 MPa
Body pressure 1.5MPa, 2.4MPa, 3.75MPa
Seal test 1.1 MPa, 1.76 MPa, 2.75 MPa
Operating temperature 0 ~ 80 ℃
Suitable media water


Z41X Rising stem soft seal gate valve parts of the main material

Serial number name material Serial number name material
1 Body Ductile iron 8 Thrust pad Tin bronze
2 gate Ductile iron coated EPDM 9 Sleeve Tin bronze
3 bolt Galvanized 10 bolt Galvanized
4 Sealing ring NBR 11 Shaft cover Ductile iron
5 cap Ductile iron 12 Dust cover NBR
6 Valve stem stainless steel 13 Handwheel cast iron
7 "O" ring NBR 14 Tighten the nut

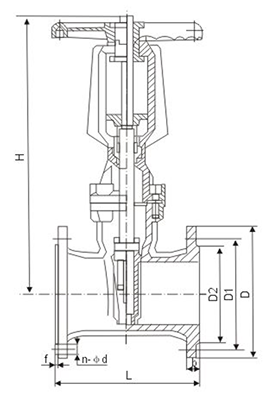

Z41X Rising stem soft seal gate valve main dimensions of connection

DN

50

65

80

100

125

150

200

250

300

350

400

L

178

190

203

229

254

267

292

330

356

381

406

HA

322

332

350

420

581

581

736

882

1009

1300

1380

HC

374

398

429

524

721

736

942

1031

1117

1655

1805



Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Z41X Rising Stem Soft Seal Gate Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
