700X Water Pump Control Valve

Product overview

Product model: 700X
Nominal diameter: DN40~1600mm
Nominal pressure: PN1.0~2.5MPa
Applicable medium: water, oil, sea water, sewage
Applicable temperature: 0~80℃
Structure length standard: GB/T12221-2005
Standard of connection flange: GB/T9113
Pressure and temperature grade: GB/T12224-2005
Test inspection standard: GB/T13927-2008

700X Water Pump Control Valve product details

700X Water Pump Control Valve Product Description:

700X pump control valve consists of the main valve, solenoid pilot valve, needle valve, ball valve, check valve, travel switch, microfilter and pressure gauge hydraulic control system to take over. Pump to stop working, the first by the import pressure to close the main valve 90%, the pump stopped running. The remaining 10% is turned off by the backwater. Water hammer can prevent the phenomenon.

This product uses solenoid pilot control, no other devices and energy. Save energy, easy maintenance, stop the pump steady. Solenoid valve can be AC 220V or DC 24V.

This series of valve products are widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.


700X Water Pump Control Valve works:

When the pump work to the downstream water supply valve, the solenoid valve fully open, the needle valve adjusted to a suitable opening, the upstream water through the needle valve, check valve into the main valve control room, the electromagnetic pilot valve outflow, when the main valve control room The pressure to maintain the main valve at a suitable opening, to maintain normal downstream water supply.

When the pump stops working, solenoid valve first closed, the main valve control room to stop drainage, control room pressure, the main valve began to shut down. When closed to 90%, the main valve upper limit switch output stop pump signal, the pump stops running. At this point the downstream backwater through the one-way valve into the main valve control room, control room pressure, the main valve is closed.


700X Water Pump Control Valve features

When the pump work to the downstream water supply valve, the solenoid valve fully open, the needle valve adjusted to a suitable opening, the upstream water through the needle valve, check valve into the main valve control room, the electromagnetic pilot valve outflow, when the main valve control room The pressure to maintain the main valve at a suitable opening, to maintain normal downstream water supply. When the pump stops working, solenoid valve first closed, the main valve control room to stop drainage, control room pressure, the main valve began to shut down. When closed to 90%, the main valve upper limit switch output stop pump signal, the pump stops running. At this point the downstream backwater through the one-way valve into the main valve control room, control room pressure, the main valve is closed.


700X Water Pump Control Valve main technical parameters and performance indicators

Nominal pressure (Mpa)

Shell test pressure (MPa)

Seal test pressure (MPa)

Suitable media

Medium temperature (℃)

1.0

1.5

1.1

water

0-80

1.6

2.4

1.76

2.5

3.75

2.75


700X Water Pump Control Valve main parts material

Part Name

Parts and materials

Body valve cover

WCB

Valve seat disc

Copper alloy

O-ring seals

Nitrile rubber

Valve stem

2Cr13

spring

50CrVA

Needle valve

Copper alloy

Ball valve

Copper alloy

Float valve

Copper alloy

Micro filter

stainless steel

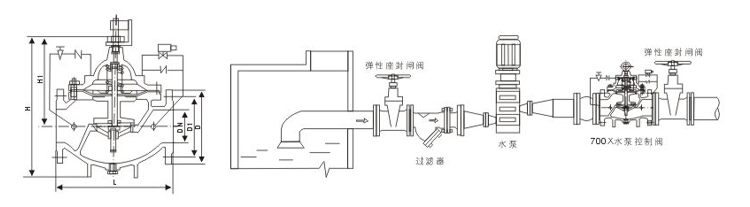

700X Water Pump Control Valve main dimensions


DN L A A1 H H1 F
       mm
D1
       mm
D2
       mm
n-Φd
mm mm mm mm mm mm PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5 PN1.0 PN1.6 PN2.5
20 180 292 136 342 247 116 105 105 105 75 75 75 58 58 56 4-13.5 4-13.5 4-14
25 180 292 136 342 247 116 115 115 115 85 85 85 68 68 65 4-13.5 4-13.5 4-14
32 180 292 136 342 247 116 140 140 140 100 100 100 78 78 76 4-17.5 4-17.5 4-18
40 240 330 155 395 278 170 150 150 150 110 110 112 88 88 84 4-17.5 4-17.5 4-18
50 240 330 155 395 278 170 165 165 165 125 125 125 102 102 99 4-17.5 4-17.5 4-18
65 250 350 165 405 298 180 185 185 185 145 145 145 122 122 118 4-17.5 4-17.5 8-18
80 285 365 175 430 313 210 200 200 200 160 160 160 133 133 132 8-17.5 8-17.5 8-18
100 360 410 195 510 350 275 220 220 235 180 180 190 158 158 156 8-17.5 8-17.5 8-22
125 400 455 220 560 365 310 250 250 270 210 210 220 184 184 184 8-17.5 8-17.5 8-26
150 455 475 230 585 420 355 285 285 300 240 240 250 212 212 211 8-22 8-22 8-26
200 585 530 255 675 450 460 340 340 360 295 295 310 268 268 274 8-22 12-22 12-26
250 650 623 300 730 470 500 395 405 425 350 355 370 320 320 330 12-22 12-26 12-30
300 800 700 340 760 490 580 445 460 485 400 410 430 370 370 389 12-22 12-26 16-30
350 860 840 415 840 526 640 505 520 555 460 470 490 430 430 448 16-22 16-26 16-33
400 960 880 430 910 570 715 565 580 620 515 525 550 482 482 503 16-26 16-30 16-36
450 1075 930 460 1030 610 780 615 640 670 565 585 600 532 550 548 20-26 20-30 20-36
500 1075 980 490 1135 665 830 670 715 730 620 650 660 585 585 609 20-26 20-33 20-36
600 1230 1060 530 1270 725 920 780 840 845 725 770 770 685 685 720 20-30 20-36 20-39
700 1650 1130 560 1460 865 980 895 910 960 840 840 875 800 800 820 24-30 24-36 24-42
800 1750 1230 610 1640 975 1050 1015 1025 1085 950 950 990 905 905 9285 24-33 24-39 24-48


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the 700X Water Pump Control Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
