Q341F/H/W/Y API Fixed Ball Valve

Product overview

Product model: Q341F/H/W/Y
Nominal diameter: NPS2"~40"
Nominal pressure: Class150~2500MPa
Applicable temperature: -196 ~ 350℃
Applicable medium: water, gas, oil, natural gas and acid and alkali corrosive medium
Drive mode: manual, pneumatic, electric, hydraulic and so on
Design and Manufacture: API 6D
Structure Length: ANSI BI6.10
Connection flange: ANSI BI6.5
Check and test: API STD.598

Q341F/H/W/Y API Fixed Ball Valve product details

Q341F/H/W/Y API Fixed Ball Valve purposes

Q341F/H/W/Y API Fixed Ball Valve produced and sold by Baigang valve group, the valve body in the two valve seat parts along the vertical axis with the valve section is divided into three parts, the entire valve along the central axis around the stem Symmetrical, it is mainly used in the pipeline to cut off, distribute and change the direction of medium flow. API American Standard cast steel fixed ball valve Its large pivot structure to ensure accurate ball center position under high pressure to ensure good valve performance; standard seat with spring structure, the valve seat to the ball, the API American Standard Steel Fixed ball valve to ensure a good import and export of two-way sealing performance; API American Standard fixed steel ball valve with its own discharge valve, the body cavity can be discharged to the outside; pivot blowing protection structure to prevent leakage effectively; Low friction Coefficient of bearings, making torque to a minimum, easy to open and close the valve; stem and body effective contact, the anti-static grounding device superior performance. With excellent performance, high reliability, wide range of uses, the price is reasonable and so on.

Q341F/H/W/Y API Fixed Ball Valve structure characteristics
1, the manual part can be pressed steel handle or stainless steel casting handle. The handle is provided with a limit structure to set a limit position where the valve is opened and closed. When the valve is used on a key device, a lock hole is provided on the limit block to lock the switch position to avoid misoperation. There is a clear on and off indicator on the handle.
2, the stem with A182F (1Cr13) overall forging and modulation, hardness HB220 ~ 250. Stem by flat key or spline or square and the handle connection, versatility, easy disassembly. Stem with anti-blowing structure.
3, the valve packing selection braided, flexible graphite seals or PTFE seals, making the stem in a certain lubrication conditions to achieve a reliable seal.
4, according to the need, the ball valve can be designed to anti-static structure, the ball and the stem, stem and valve body set between the conductive spring to avoid electrostatic ignition lit flammable substances, to ensure system security.
5, sealed in various forms. According to different conditions can choose soft seal, hard seal, fire valve seat and other structures; DN150 below the form of floating ball, below DN200 fixed ball form.
6, the ball valve seat can be set at the secondary seal structure, the valve seat and the stem part of the installation of grease injection valve, the emergency case can be temporarily sealed, and the valve stem can be lengthened according to need to be laid properly place.

Q341F/H/W/Y API Fixed Ball Valve main material description


Body Valve stem Valve ball Sealing surface Gasket filler Operating temperature Suitable media
WCB 1Cr13 1Cr13

1Cr13

Stellite alloy

Body material

Flexible graphite
stainless steel plus flexible graphite
08 mild steel
F304 F316
Flexible graphite
braided graphite
-29-425 ° C Water, steam, oil
WC6 15CrMo 15CrMo -29-425 ° C
WC9 25Cr2MoV 25Cr2MoV
LCB 304 304 -46-354 ° C
CF8 304 304 -196-600 ° C Some acid, alkali
CF3 304L 304L
CF8M 316 316
CF3M 316L 316L

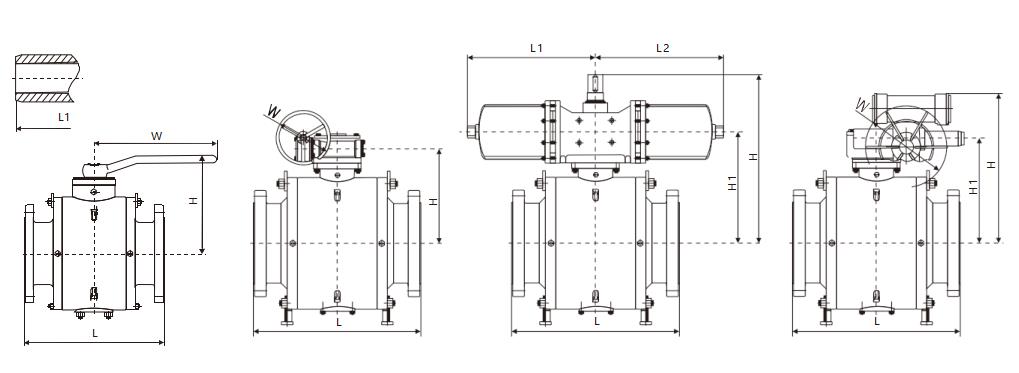

Q341F/H/W/Y API Fixed Ball Valve main dimensions


DN 2" 2-1 / 2 " 3 " 4 " 5 " 6 " 8" 10 " 12 " 14 " 16 " 18 " 20 " 24" 28 " 32 " 36 " 40 "
d1 51 64 76 102 127 152 203 254 305 337 387 438 489 591 686 781 876 978
L RF 178 191 203 229 356 394 457 533 610 686 762 864 914 1067 1245 1372 1524 1753
BW 216 241 283 305 381 457 521 559 635 762 838 914 991 1143 1346 1524 1727 1880
H 102 114 127 152 184 219 273 360 395 430 470 550 580 700 800 950 1100 1200
Manual H1 107 125 152 178 300 330 398 495 580 625 670 698 840 1050 1100 1150 1247 1374
E - - - - - - 116 116 171 171 257 257 257 150 83 83 123 123
F - - - - - - 350 350 420 420 400 400 400 410 650 650 735 735
W 230 400 400 650 1050 150 600 600 800 800 800 800 800 800 800 800 800 800
Wt
(Kg)
12 16 22 35 58 74 205 322 460 576 864 1280 1600 3540 4500 5940 7540 9320
electric H2 - - - - - 554 600 652 760 770 830 - 940 1020 1115 - - -
L1 - - - - - 235 235 235 259 400 400 - 410 410 410 - - -
pneumatic H3 274 379 389 479 552 666 736 926 159 1127 1393 1468 1538 1370 1450 - - -
L2 270 405 405 576 576 776 776 776 1060 1060 1360 1360 1360 2840 2840 - - -


Q341F/H/W/Y API Fixed Ball Valve
 Class 300Lb

DN 2" 2-1 / 2 " 3 " 4 " 5 " 6 " 8" 10 " 12 " 14 " 16 " 18 " 20 " 24" 28 " 32 " 36 " 40 "
d1 51 64 76 102 127 152 203 254 305 337 387 438 489 591 686 781 876 978
L RF 216 241 283 305 381 403 502 568 648 762 838 914 991 1143 1346 1524 1727 1880
BW 216 241 283 305 381 457 521 559 635 762 838 914 991 1143 1346 1524 1727 1880
H 102 114 127 152 184 219 273 360 395 430 470 550 580 700 800 950 1100 1200
Manual H1 107 125 152 178 300 330 398 495 580 625 670 698 840 1050 1100 1150 1247 1374
E - - - - - - 116 116 171 171 257 257 257 150 83 83 123 123
F - - - - - - 350 350 420 420 400 400 400 410 650 650 735 735
W 230 400 400 650 1050 150 600 600 800 800 800 800 800 800 800 800 800 800
Wt
(Kg)
15 24 30 55 87 118 255 370 533 640 1030 1524 2100 4200 5300 7860 8684 10300
electric H2 - - - - - 235 235 400 400 410 410 - 420 690 690 - - -
L1 - - - - - 74 350 350 420 420 400 - 400 410 650 - - -
pneumatic H3 340 379 452 479 646 666 814 1002 1059 1150 1205 1250 1295 1390 1470 - - -
L2 405 405 574 574 756 756 1060 1060 1060 1360 1360 2840 2840 3300 3300 - - -


Q341F/H/W/Y API Fixed Ball Valve Class 400Lb

DN 2" 2-1 / 2 " 3 " 4 " 6 " 8" 10 " 12 " 14 " 16 " 20 " 24" 28 "
d1 51 64 76 102 152 203 254 305 337 387 489 591 686
L RF 292 330 356 406 495 597 673 762 826 902 1054 1232 1397
BW 295 333 359 410 498 600 676 765 829 905 1060 1241 1410
H 114 124 133 159 250 294 395 445 500 530 660 800 900
Manual H1 108 155 197 235 300 374 445 512 550 615 810 1010 1180
E 116 116 116 116 116 171 171 257 257 257 150 83 123


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Q341F/H/W/Y API Fixed Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
