Q644F Pneumatic Three-way Ball Valve

Product overview

Model: Q644F
Nominal diameter: DN15 ~ 200mm
Nominal pressure: PN1.6 ~ 4.0MPa
Operating temperature: PTFE≤150 ℃ PTL≤300 ℃
Medium: C: water, oil and gas; P: nitric acid; R: acetic acid class
Main material: WCB, CF8
Design specifications: GB / T 12237 API 6D API 608 BS 5351
Structure length: GB / T 12221 ASME B16.10
Flange connection: GB / T 9113 ASME B16.5
Test and test: GB / T 13927 API 598 API 6D

Q644F Pneumatic Three-way Ball Valve product details

Q644F Pneumatic Three-way Ball Valve summary
Q644F Pneumatic Three-way Ball Valve produced and sold by Baigang valve group can be divided into L-shaped pneumatic three-way ball valve and T-shaped pneumatic three-way ball valve, L-shaped (Q44F) three-way ball valve for medium flow switching, Channel connection; T-shaped (Q45F) three-way ball valve for medium diversion, confluence and flow switching. T-tee can make the three channels connected to each other or the two of the channels. Three-way ball valve generally use two seat structure, can also be used according to user requirements four seat structure.

Q644F Pneumatic Three-way Ball Valve performance parameters

test pressure Nominal pressure (Mpa)
Mpa 1.6 2.5 4.0 CL150 JIS10K
Strength test 2.4 3.8 6.0 3.2 2.4
Seal test 1.8 2.8 4.4 2.2 1.5
Airtight test 0.5-0.7
Operating temperature PTFE≤150 ℃ PTL≤300 ℃
Suitable media C: water, oil and gas; P: nitric acid; R: acetic acid


Q644F Pneumatic Three-way Ball Valve parts of the main material

Body, bonnet WCB, CF8
Sphere WCB Hcr, CF8
Valve stem 2Cr13, CF8
Seat PTFE
filler PTFE

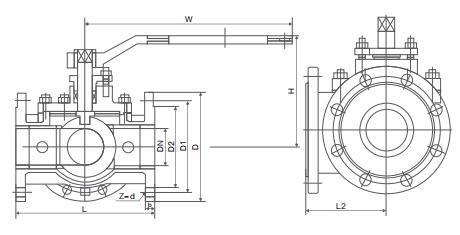

Q644F Pneumatic Three-way Ball Valve main dimensions


PN Nominal diameter L L1 H W Weight (kg)
Mpa mm in mm mm mm mm 1.6 2.5 4.0 CL150 JIS10K

1.6
2.5
4.0
CL150
JIS10K

15 1/2 130 65 62 100 2.5 3.0 3.5 2.5 2.5
20 3/4 150 75 68 160 3.0 3.5 4.5 3.0 3.6
25 1 160 80 75 160 4.8 5.0 6 5.0 5.0
32 1 1/4 180 90 85 200 6.5 7 8.5 7 7
40 1 1/2 200 100 95 200 8.5 9 10.5 9 9
50 2 230 115 110 250 11 12 14 12 11
65 2 1/2 290 145 130 300 15 17 20 16 16
80 3 310 155 155 400 21 22 32 21 22
100 4 350 175 180 500 33 36 50 36 36
125 5 400 200 250 600 65 70 80 68 70
150 6 480 240 275 800 103 110 120 105 105
200 8 580 290 325 1000 152 168 180 160 160


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the Q644F Pneumatic Three-way Ball Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
