GLJW-4 Impeller Feeder

Product overview

Product model: GLJW-4
Product specification: DN150-600
Applicable temperature: ≤300℃
Applicable medium: pulverized coal and other powder materials
Ash discharge volume: 1.5-250m3/h

GLJW-4 Impeller Feeder product details

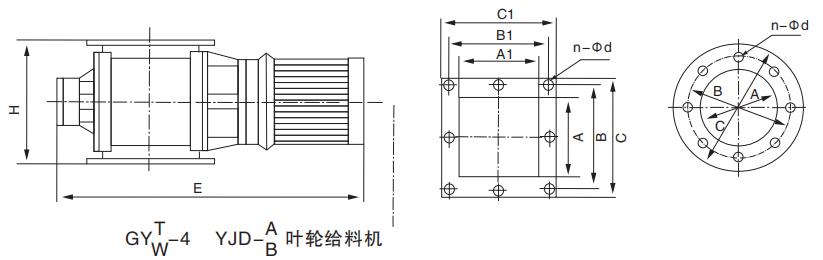

GLJW-4 Impeller Feeder main dimensions


Type AXA BXB CXC H E  nd  Power
kw
Temperature
Volume per revolution
L / revolution
Speed r / min Discharge force m3 / h
2 type 240 200 150 240 ~ 830 8-ф9 0.55 ≤280 2 liters 24 2.8
4 type 280 230 180 280 ~ 870 8-ф11 0.55 ≤280 4 liters 24 6
6 type 300 250 200 300 ~ 890 8-ф11 0.55 ≤280 6 liters 24 8.5
8 type 320 270 220 320 ~ 910 8-ф11 0.75 ≤280 8 liters 24 11.5
10 type 340 290 240 340 ~ 1020 8-ф1 3 1.1 ≤280 10 liters 24 14
12 type 360 310 260 360 ~ 1040 8-ф1 3 1.1 ≤280 12 liters 24 17
14 type 380 330 280 380 ~ 1060 8-ф1 7 1.1 ≤280 14 liters 24 20
16 type 400 350 300 400 ~ 1080 8-ф1 7 1.1 ≤280 16 liters 24 23
18 type 420 370 320 420 ~ 1120 8-ф1 7 1.5 ≤280 18 liters 24 26
20 type 440 390 340 440 ~ 1140 8-ф1 7 1.5 ≤280 20 liters 24 29
26 type 510 450 400 520 ~ 1300 8-ф1 7 2.2 ≤280 40 liters 24 57
30 type 550 495 440 560 ~ 1350 12-ф17 2.2 ≤280 48 liters 24 69
36 type 620 555 500 620 ~ 1400 12-ф17 2.2 ≤280 60 liters 24 86
40 type 650 600 540 660 ~ 1470 12-ф17 2.2 ≤280 75 liters 24 108
46 type 720 660 600 750 ~ 1580 12-ф20 3 ≤280 130 liters 24 187
50 type 770 720 650 800 ~ 1670 12-ф20 4 ≤280 150 liters 24 215
56 type 820 765 700 850 ~ 1730 12-ф20 4 ≤280 210 liters 24 300
60 type 870 825 750 900 ~ 1780 12-ф20 5.5 ≤280 270 liters 24 390
66 type 920 870 800 950 ~ 1850 12-ф20 5.5 ≤280 310 liters 24 445
90 type 1100 1010 900 1200 ~ 2050 16-ф20 7.5 ≤280 375 liters 33 740
100 type 1200 1110 1000 1300 ~ 2250 16-ф20 7.5 ≤280 410 liters 33 810


Reminder:

All text, data and pictures in this article are for reference only.To see more details of the GLJW-4 Impeller Feeder performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
